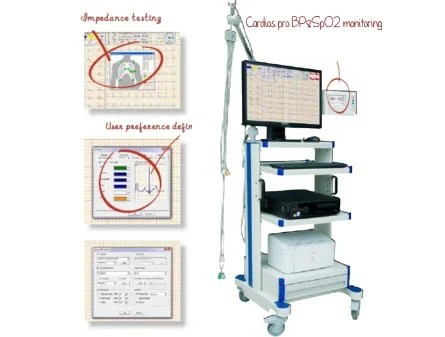

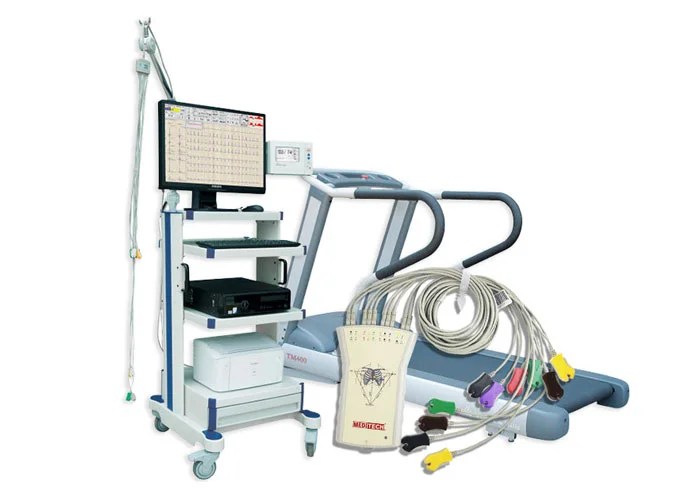

Cardios Pro Stress Test System
- Cardios Pro Stress Test System for comprehensive evaluation of exercise stress test
- Features high resolution A/D for accurate measurements
- Utilizes patented Meditech technology for precise results
- Includes different selectable filters for enhanced data analysis
- Offers various trends and live arrhythmia detection for thorough review
- SKU
- OD-00409
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Cardios Pro Stress Test System
Comprehensive exercise stress testing platform with high-resolution ECG acquisition, real-time arrhythmia detection, and integrated hemodynamic monitoring. Delivers precise diagnostic data for cardiac evaluation with patented Meditech technology and flexible protocol support.
Clinical overview
The Cardios Pro Stress Test System provides comprehensive evaluation of exercise-induced cardiac responses through simultaneous ECG, symptom monitoring, and blood pressure assessment. Utilizing patented Meditech digital synchronous A/D technology and proprietary signal processing algorithms, the system delivers high-fidelity diagnostic data with minimal baseline drift and artifact interference. Real-time arrhythmia detection and live review capabilities enable immediate clinical decision-making during stress testing protocols.
The platform supports both preset classical protocols and unlimited user-defined testing sequences, accommodating diverse clinical workflows. Integration with standard treadmills and bicycle ergometers, combined with rehabilitation mode for cardiac recovery assessment, makes Cardios Pro suitable for comprehensive cardiac evaluation across acute and chronic care settings.
Key features & surgeon benefits
High-Resolution ECG Capture
- 24K SPS/Ch sampling rate with 24-bit quantization
- 0.4 μV resolution for precise waveform detection
- Patented multi-channel synchronous A/D for accurate timing
Advanced Filtering & Analysis
- Myoelectric filter based on ECG spectrum analysis
- Minimum delay baseline wander eraser algorithm
- Selectable LP, HP, and artifact filters for data optimization
Real-Time Hemodynamic Tracking
- Simultaneous ECG, BP, SpO₂, METS, and VO₂ max display
- Live arrhythmia detection and review capabilities
- ST-segment trending and HR analysis during exercise
Protocol & Equipment Integration
- Preset and user-defined protocols for diverse testing scenarios
- Automatic treadmill/ergometer control via RS-232 interface
- Rehabilitation mode for cardiac recovery assessment
Technical specifications
| Indications | Exercise stress testing, cardiac function evaluation, arrhythmia detection, rehabilitation monitoring |
|---|---|
| Sampling rate | A/D: 24K SPS/Ch; Recording: 1K SPS/Ch |
| Quantization precision | A/D: 24 bits; Recording: 16 bits |
| Resolution | 0.4 μV |
| Common mode rejection | >110 dB |
| Input impedance | >20 MΩ |
| Frequency response | 0.05–250 Hz (±3 dB) |
| Time constant | ≥3.2 sec |
| Dynamic range | ±25 mV |
| Maximum electrode potential | ±800 mV DC |
| Defibrillation protection | Built-in |
| Patient current leakage | <10 μA |
| Communication | Isolated USB (4000 V) |
| Skin-electrode impedance | Measurement capability included |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Patient Cable | 10-lead, 3.5 m length | 1 |
| Disposable Exercise ECG Electrodes | Standard electrodes for stress testing | 25 |
| Chest Electrodes | Precordial electrode set | 6 |
| Clamp Electrodes | Limb lead electrodes | 4 |
| Cleaning Cloth | Electrode site preparation | 1 |
| Hardware | Cardios Pro digital ECG acquisition box | 1 |
| Software | Exercise ECG, resting ECG (12 leads), data management suite | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, equipment integration, and pricing. We provide comprehensive support for installation, training, and ongoing technical assistance.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
