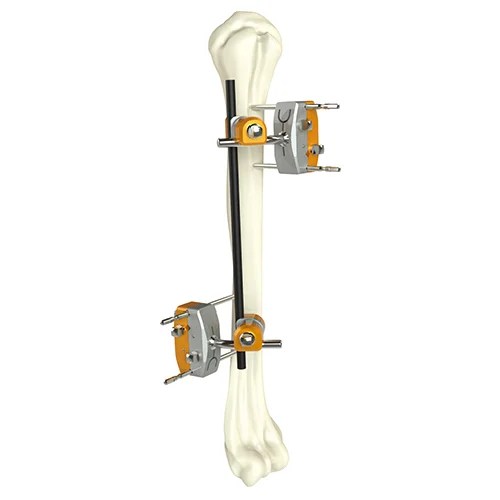

Humeral Shaft External Fixator
- Complete external fixator set for humeral shaft fractures
- Includes rod-rod coupling, pin clamps, post, connecting rod, and apex pins
- High-quality aluminum connecting rod for stability
- Self-drilling apex pins for easy and secure fixation
- Suitable for 5mm rods and 3/4mm pins
- SKU
- 7100-09
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Humeral Shaft External Fixator
Complete external fixator set designed for reliable stabilization of humeral shaft fractures. Features high-quality aluminum connecting rod, self-drilling apex pins, and precision pin clamps for optimal fixation and ease of application.
Clinical overview
The Humeral Shaft External Fixator is a comprehensive system engineered for the stabilization and management of humeral shaft fractures. This complete set provides surgeons with all necessary components for secure fixation, including rod-rod couplings, precision pin clamps, adjustable posts, and self-drilling apex pins. The system is designed to accommodate 5mm rods and 3/4mm pins, offering flexibility in surgical planning and intraoperative adjustment.
The aluminum connecting rod ensures lightweight yet rigid support, while the self-drilling apex pins facilitate rapid and secure bone engagement without the need for pre-drilling. The 4-hole pin clamps provide multiple fixation points, allowing for customized frame configurations based on fracture pattern and anatomical considerations. This modular approach enables surgeons to optimize stability while maintaining ease of assembly and removal.
Key features & surgeon benefits
Rigid Frame Design
- High-quality aluminum connecting rod for superior load distribution
- Dual rod-rod couplings ensure frame integrity
- Multi-point pin fixation prevents micromotion and promotes healing
Efficient Application
- Self-drilling apex pins eliminate pre-drilling steps
- Quick-connect rod couplings reduce operative time
- Intuitive assembly with minimal instrumentation required
Cost-Effective Solution
- Complete set reduces need for additional purchases
- Durable aluminum and stainless steel components ensure longevity
- Reusable design minimizes per-case consumable costs
Modular Configuration
- Adjustable 30-degree posts accommodate anatomical variations
- Compatible with standard 5mm rod systems
- Customizable frame geometry for complex fracture patterns
Technical specifications
| Indications | Humeral shaft fractures requiring external fixation |
|---|---|
| Sizes / range | 5mm rods, 3/4mm pins, 4×120mm apex pins |
| Material | Aluminum connecting rod, stainless steel clamps and posts |
| Sterilisation | As applicable |
| Packaging | Complete set in sterile or non-sterile configuration |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item Code | Description | Qty |
|---|---|---|
| 7100-0901 | Rod-Rod Coupling (5mm Rod) | 2 |
| 7100-0902 | 4-Hole Pin Clamp (3/4mm Pin) | 2 |
| 7100-0903 | Post 5mm/30 Degree | 2 |
| 7100-0904 | Aluminum Connecting Rod 5×200mm | 1 |
| 7100-0905 | Apex Pin Self-drilling 4×120mm | 4 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical applications, or arrange a product demonstration. We provide rapid delivery and comprehensive technical support for all external fixator systems.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
