Medical Device Diagnostic Portable Digital Ultrasound Scanner SONO R
- Portable digital ultrasound scanner ideal for various medical applications
- Features a 5.5 inch TFT color LCD monitor with full digital beam forming technology
- Multi-functional device with 256 levels of gray scale and various measurement options
- Comes with a standard package including a multi-frequency convex probe and accessories
- SKU
- OD-256
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

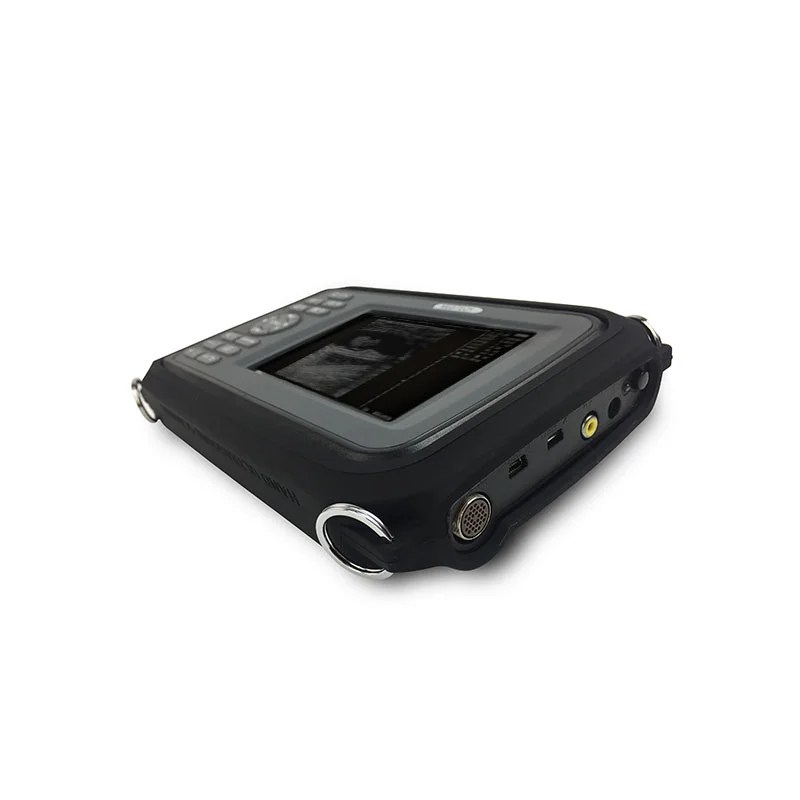

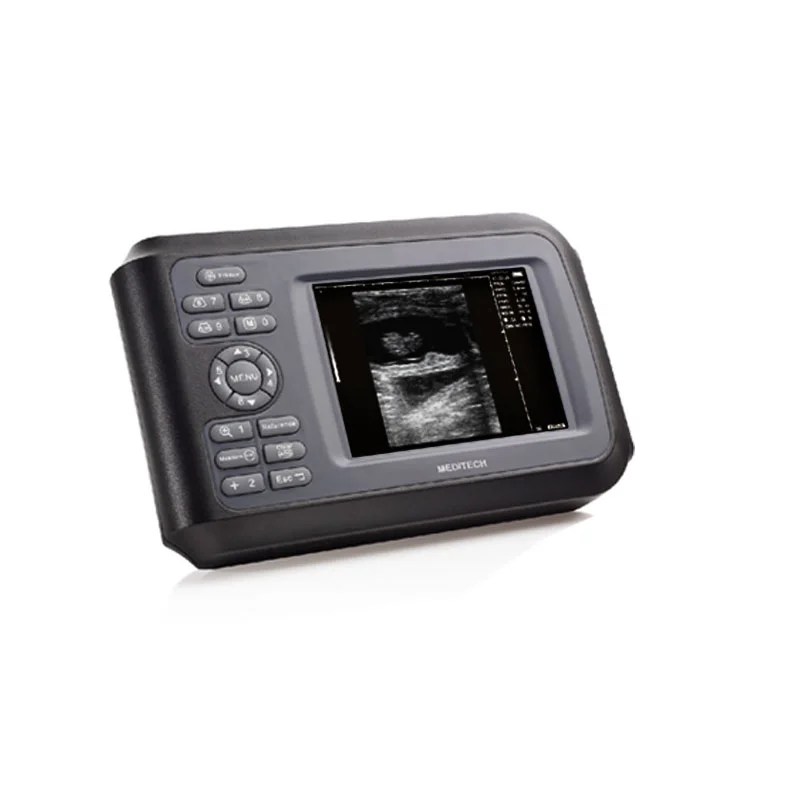

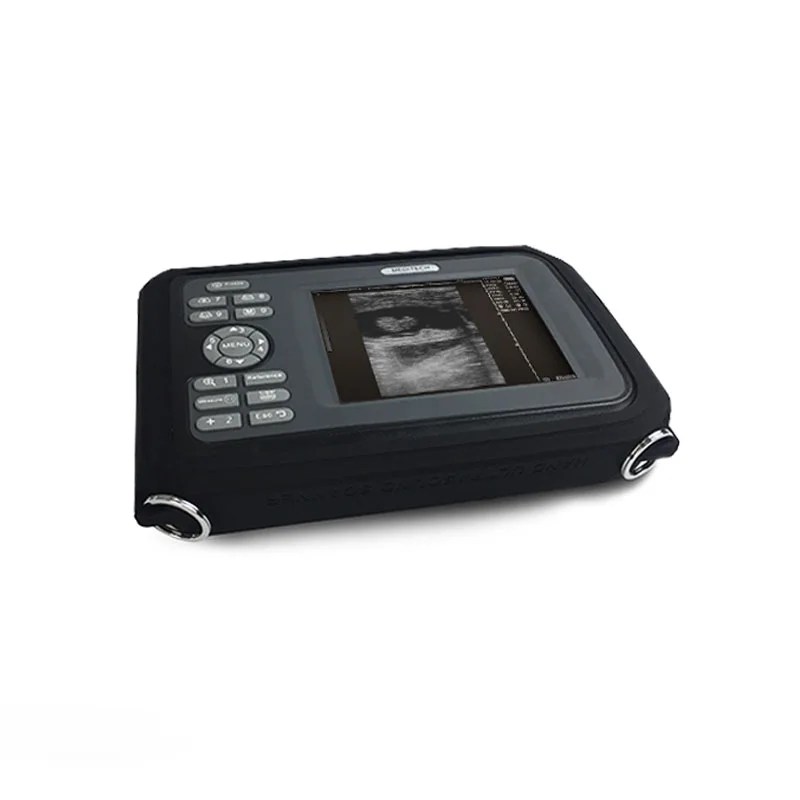

SONO R Portable Digital Ultrasound Scanner
A fully portable, battery-powered digital ultrasound system with 5.5-inch TFT color LCD display and full digital beam forming technology. Ideal for point-of-care diagnostics across general imaging, obstetrics, gynecology, and cardiac applications. Compact, lightweight design with comprehensive measurement and storage capabilities.
Clinical overview
The SONO R is a fully digital, portable ultrasound scanner engineered for clinicians requiring high-quality diagnostic imaging in resource-constrained or mobile settings. With full digital beam forming technology and 256 levels of gray scale, the system delivers excellent image quality across a wide range of clinical applications. The 5.5-inch TFT color LCD monitor provides clear visualization, while the compact form factor (265 × 46 × 53 mm, 700 g) enables point-of-care deployment in emergency departments, clinics, and field settings.
The system supports multiple probe configurations—convex, linear, micro-convex, and rectal—allowing clinicians to optimize imaging for specific anatomical regions and pathologies. Integrated measurement tools for distance, circumference, area, volume, heart rate, and specialized obstetric calculations (GA, EDD, fetal biometry) streamline workflow and reporting. With 64 permanent image storage slots and a 256-frame cine loop, clinicians can capture and review dynamic sequences for comprehensive assessment.
Key features & surgeon benefits
Crystal-clear visualization
- 5.5-inch TFT color LCD with full digital beam forming
- 256 levels of gray scale for superior contrast resolution
- Multiple display modes: B, B+B, B+M, M, 4B
- Image magnification up to ×2.0 with 4 focusing combinations
- Real-time histogram, gamma correction, and scanning angle adjustment
Efficient data management
- 64 permanent image storage with 256-frame cine loop
- USB 2.0 connectivity for real-time image upload to PC
- PAL-D and NTSC video output for integration with existing systems
- Comprehensive measurement and notation tools with full-screen text editing
- Automated report generation with patient demographics and measurements
True point-of-care capability
- Lightweight design: 700 g with compact footprint
- Rechargeable lithium battery: ≥2 hours continuous operation
- AC 100–110V/240V, 50/60 Hz mains power option
- Optional DC car charger for mobile deployment
- Durable hard and silicon protective cases included
Versatile probe ecosystem
- Multi-frequency convex probe (standard) for abdominal and cardiac imaging
- Optional 7.5 MHz linear array for high-resolution small parts and vascular
- Optional 6.5 MHz rectal and trans-vaginal probes for specialized applications
- Optional 3.5 MHz micro-convex for extended field-of-view imaging
- Adjustable probe frequency (3-point tuning per probe) for optimization
Technical specifications
| Indications | General imaging, obstetrics, gynecology, cardiac, abdominal, vascular, small parts, rectal |
|---|---|
| Display | 5.5-inch TFT color LCD; modes: B, B+B, B+M, M, 4B |
| Gray scale | 256 levels |
| Image storage | 64 permanent images; 256-frame cine loop (≥400 frames) |
| Scan depth | 70–140 mm (adjustable) |
| Image magnification | ×1.0, ×1.2, ×1.5, ×2.0 |
| Focus positions | 4 selectable combinations |
| Measurements | Distance, circumference, area, volume, heart rate, GA, EDD, fetal biometry (CRL, BPD, HC, FL, AC) |
| Anatomical markers | 16 posture marks with 15 different calipers |
| Image processing | DFS, DRF, RDA, VGA/DSC, histogram, gamma correction, color encode, image smoothing |
| Probe frequency | Adjustable (3-point tuning per probe) |
| Output | USB 2.0, PAL-D, NTSC video |
| Power supply | AC 100–110V/240V, 50/60 Hz; rechargeable lithium battery (180 min continuous work) |
| Battery life | ≥2 hours continuous operation |
| Dimensions | 265 mm × 46 mm × 53 mm |
| Weight | 700 g |
| Warranty | 2 Year Manufacturer Warranty |
Probe specifications & performance
| Probe Type | Linear | Convex | Micro-convex |
|---|---|---|---|
| Detect depth (mm) | ≥80 | ≥140 | ≥90 |
| Lateral resolution (mm) | ≤1 (depth ≤60) | ≤3 (depth ≤80); ≤5 (80 < depth ≤130) | ≤3 (depth ≤60) |
| Axial resolution (mm) | ≤1 (depth ≤80) | ≤1 (depth ≤80) | ≤1 (depth ≤60) |
| Blind zone (mm) | ≤3 | ≤6 | ≤5 |
| Geometric precision—horizontal (mm) | ≤5 | ≤7.5 | ≤7.5 |
| Geometric precision—vertical (mm) | ≤5 | ≤5 | ≤5 |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Multi-frequency convex probe | Standard imaging probe for abdominal and cardiac applications | 1 |
| Hard carrying case | Protective hard case for transport and storage | 1 |
| Silicon protective case | Soft silicone case for additional protection | 1 |
| Power adapter | AC mains power supply (100–110V/240V, 50/60 Hz) | 1 |
| Rechargeable lithium battery | Battery pack for portable operation (180 min capacity) | 1 |
| Cleaning cloth | Microfiber cloth for display and probe maintenance | 1 |
Optional accessories & probes
| Item | Specification |
|---|---|
| High-frequency linear array probe | 7.5 MHz for small parts, vascular, and high-resolution imaging |
| Trans-vaginal probe | 6.5 MHz intra-cavity probe for gynecological imaging |
| Rectal probe | 7.5 MHz rectal probe for specialized applications |
| Micro-convex probe | 3.5 MHz for extended field-of-view and cardiac imaging |
| DC car charger | 12 V automotive power adapter for mobile deployment |
| USB cable | For image transfer and system connectivity |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, probe options, and delivery timelines. We provide comprehensive technical support and clinical training for all SONO R deployments.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

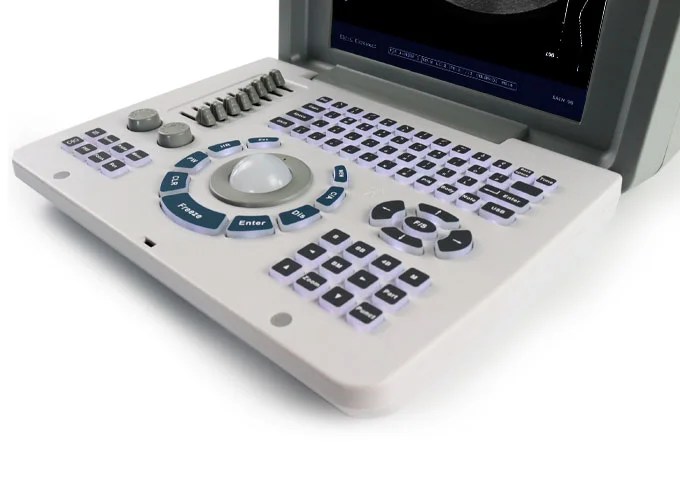

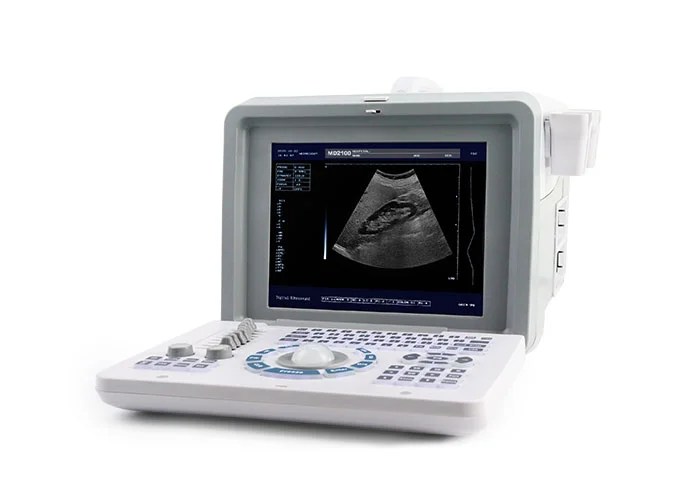

Dolphi® Pro Portable B/W Ultrasound Scanner
- Portable 2D B/W Ultrasound scanner with advanced transducer technology - 10 inch CRT Screen with clear image quality - Multiple imaging modes including B, B/B, 4B, B+M, and M - Comes with a standard multi-frequency convex probe and options for additional probes, printer, battery, and trolley

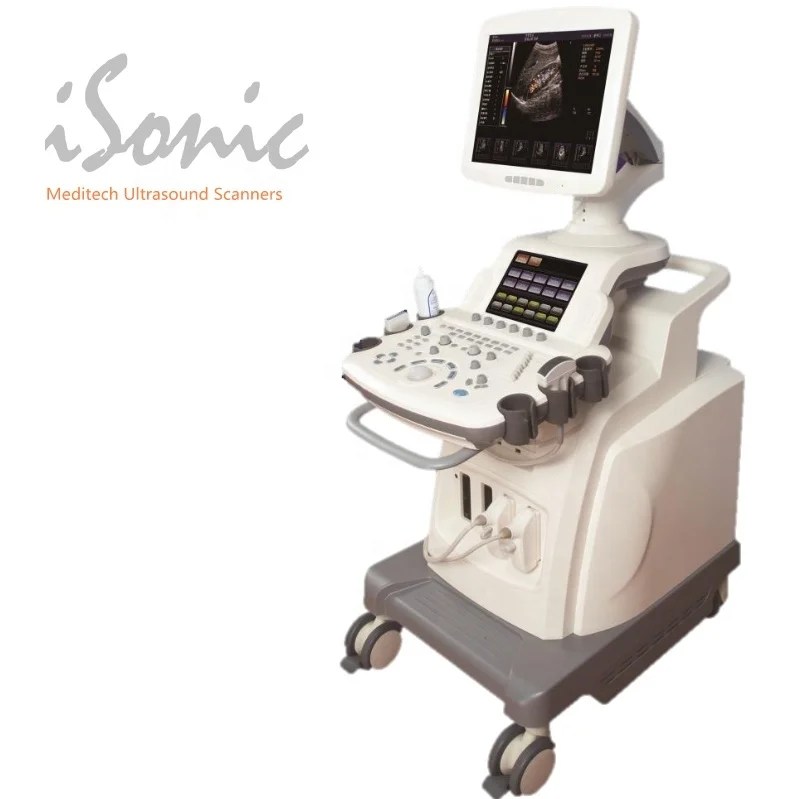

iSonic High Quality Images Color Ultrasound Scanner
- High quality color ultrasound scanner with 17" LCD screen - Features advanced imaging processing and optimization technologies - Offers various imaging modes and measurement specifications for obstetrics, gynecology, urology, and more - Includes mobile trolley, multi-frequency probes, and optional modules for enhanced functionality

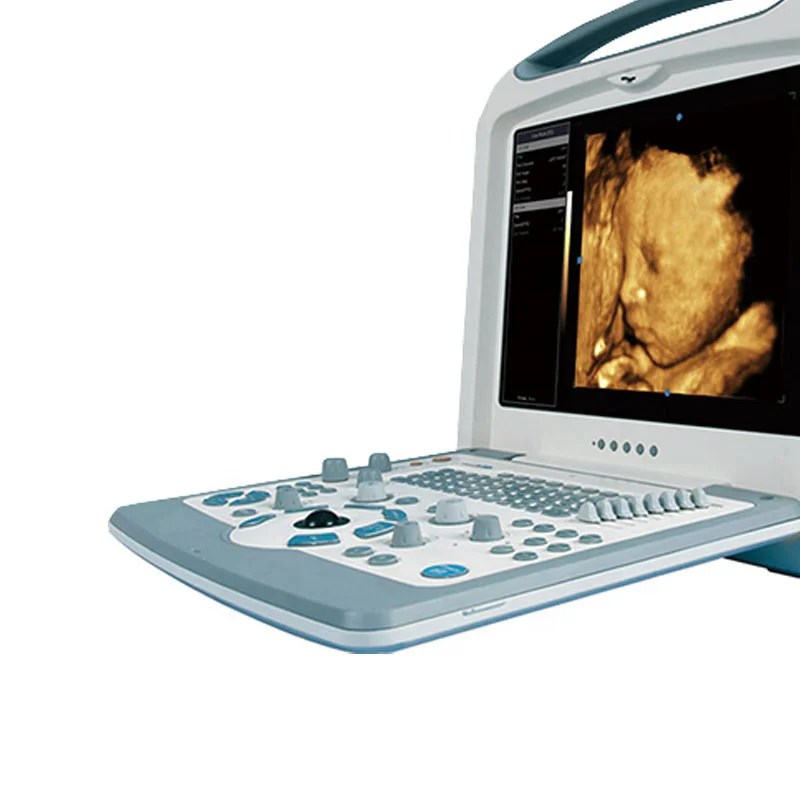

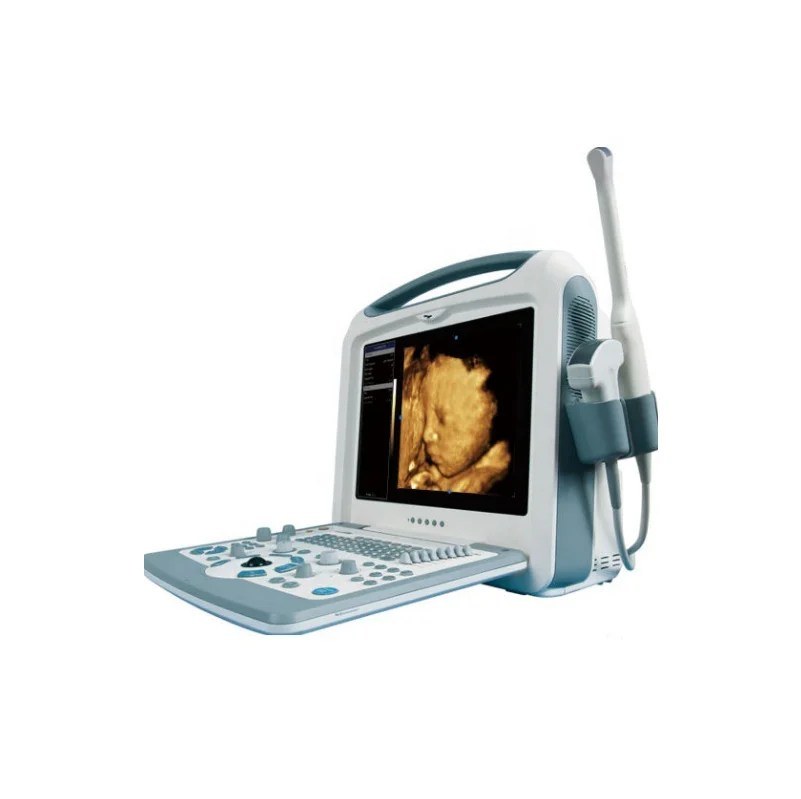

Medical Device S8i Color Portable Ultrasound Scanner
- Full-digital beam forming for clear imaging - Multiple display modes including B, BB, and PW - Extensive image processing options for accurate diagnoses - OB packages for obstetric measurements and fetal monitoring - Comes with multi frequency convex and linear probes - Optional modules for advanced imaging capabilities - Optional probes available for various applications
Sonoview® Full Digital Imaging Ultrasound Scanner
- Full digital imaging ultrasound scanner with a 15" color LCD screen - Features PC-based technology with abundant functions for clear image results - Broadband multi-frequency probes and large capacity storage options - Includes options for additional probes and a laser printer for enhanced functionality
Orthopromed 806Z Pedicle Screws Implantation Power System
- Specifically designed for spine surgery with specialized power for pedicle screws implantation - Features high torque, constant variable speed, and safer operation compared to manual screwing - Ergonomically designed for user comfort with balanced weight distribution - Integrated unit with excellent sealing, water resistance, and autoclavable for hygiene maintenance - Low loss, low noise, low wear, small noise, and various speed control options - Equipped with a 1800mA/h nickel metal hydride battery for consistent and long-lasting performance.

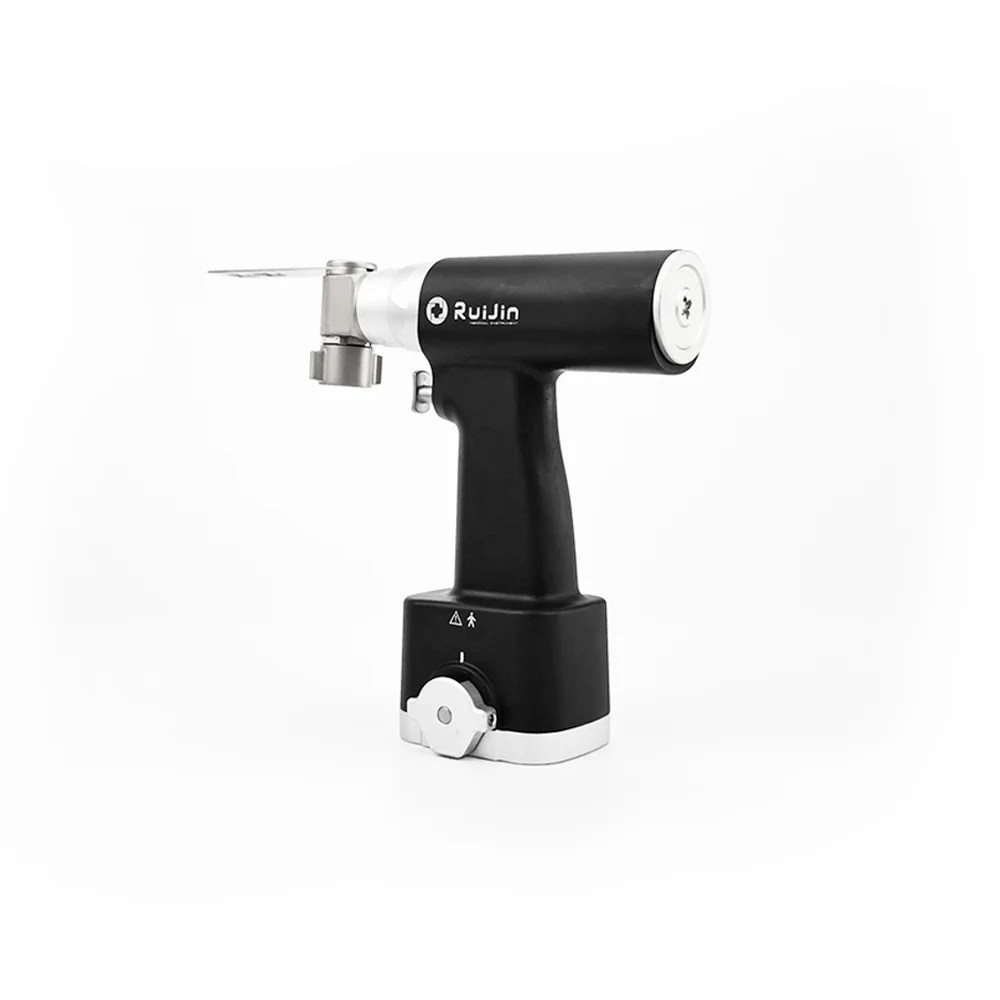

MS-1012 Surgical Oscillating Saw
- The MS-1012 Surgical Oscillating Saw is made of high-quality stainless steel material - Features a reusable design for cost-effectiveness - Operates at a speed range of 0-18000 times/min - Comes in a sleek black color for a professional look

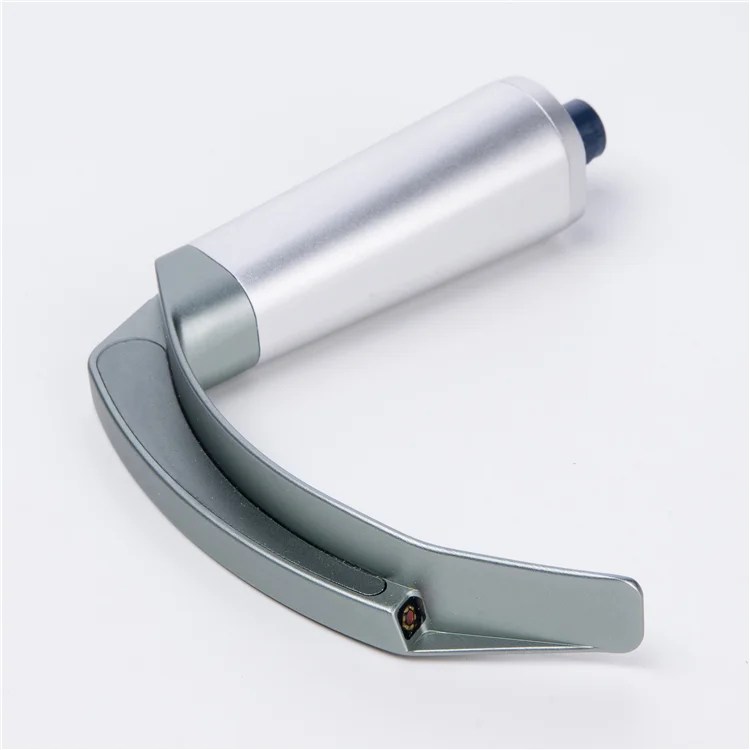

Medical Laryngoscope with Monitor, Digital Reusable ENT Device
