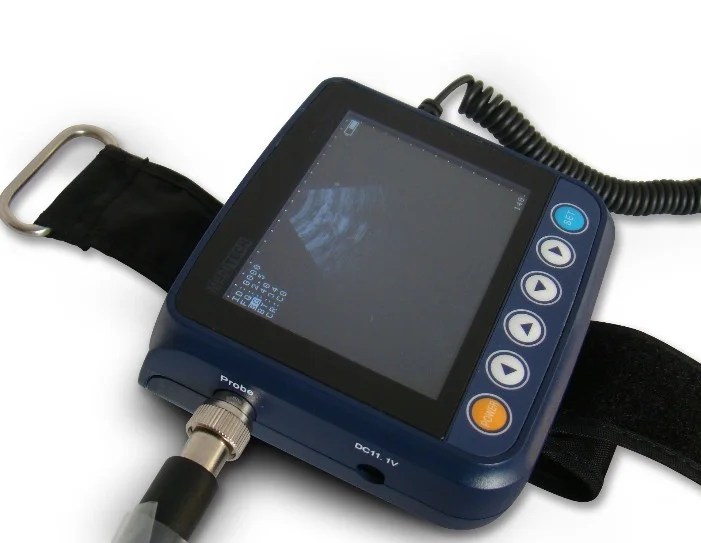

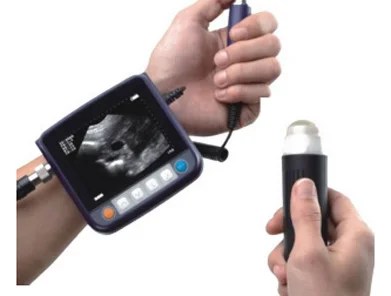

MiniScan Veterinary Mini Ultrasound Scanner Designed For Small And Large Animal Pregnancy
3.7(3 reviews)- MiniScan Veterinary Mini Ultrasound Scanner for small and large animal pregnancy
- Multi-frequency waterproof ultrasound probe
- Portable with rechargeable lithium ion battery pack
- Comes with a carrying case and wrist bandage for convenience
- Designed specifically for fertility and pregnancy scanning of horses, cattle, sheep, deer, and goats
- SKU
- OD-00434
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Veterinary Ultrasound
MiniScan Veterinary Mini Ultrasound Scanner
Portable, field-ready ultrasound system designed for fertility and pregnancy scanning in small and large animals. Multi-frequency waterproof probe with rechargeable battery, carrying case, and wrist bandage for convenient clinical use.
Ordering Ref.
On request
ConfigurationPortable handheld system
MaterialWaterproof probe, Li-ion battery
ApplicationVeterinary pregnancy scanning
Customisation and OEM configurations available on request. Contact sales for specific requirements.
Clinical overview
The MiniScan Veterinary Mini Ultrasound Scanner is a purpose-built system for field-based fertility and pregnancy assessment in large and small animal practice. Designed for use with horses, cattle, sheep, deer, and goats, the system delivers high-resolution imaging in a portable, rugged format suitable for on-farm diagnostics. The multi-frequency mechanical sector probe (2.5 / 3.5 / 5.0 MHz) provides flexible depth penetration up to 160 mm with 78-degree scan angle, enabling comprehensive reproductive tract evaluation.
Built for durability and reliability in challenging field environments, the scanner is water-resistant and dust-tight, with a wide operating temperature range. The integrated 3.5-inch high-resolution colour TFT LCD display (640 × 480 pixels) provides clear image visualization with 256 gray levels. Powered by an internal rechargeable lithium-ion battery pack offering more than 2.5 hours of continuous operation, the system is fully charged in 2 hours (75% charge in 1 hour). The lightweight design (340 g including battery) and wrist bandage support comfortable, extended clinical use without fatigue.
Key features & surgeon benefits
Portability
Field-Ready Design
- Lightweight (340 g) with integrated rechargeable battery
- Water-resistant and dust-tight construction
- Wide temperature operating range for outdoor use
- Carrying case included for transport and storage
Imaging
High-Resolution Display
- 3.5-inch colour TFT LCD monitor (640 × 480 pixels)
- 256 gray levels for detailed tissue differentiation
- Multi-frequency probe (2.5 / 3.5 / 5.0 MHz)
- 78-degree mechanical sector scan angle
Measurements
Comprehensive Analysis Tools
- Common measurements: distance, area, volume, heart rate
- Species-specific OB measurements (bovine, ovine, porcine, canine, feline)
- Built-in memory for up to 128 frames
- Real-time assessment and documentation
Ergonomics
Clinician Comfort
- Lightweight occupancy design for extended use
- Wrist bandage support included
- Good peripheral vision for animal awareness
- Comfortable grip and intuitive controls
Technical specifications
| Indications | Fertility and pregnancy scanning in horses, cattle, sheep, deer, and goats |
|---|---|
| Display | 3.5-inch high-resolution colour TFT LCD, 640 × 480 pixels |
| Probe type | Multi-frequency mechanical sector probe |
| Frequency | 2.5 / 3.5 / 5.0 MHz |
| Max depth | 160 mm |
| Scan angle | 78 degrees |
| Gray levels | 256 gray levels |
| Built-in memory | Up to 128 frames |
| Measurements | Distance, area, volume, heart rate; species-specific OB measurements |
| Power supply | AC adapter (110–110V/240V, 50/60 Hz) |
| Battery | Internal Li-ion battery pack; >2.5 hrs continuous operation; full charge in 2 hrs (75% in 1 hr) |
| Weight | 340 g (including battery) |
| Dimensions | 171 mm × 93 mm × 62 mm |
| Environmental | Water-resistant, dust-tight; wide temperature operating range |
| Warranty | 2 Year Manufacturer Warranty (1 year for probe) |
Standard system composition
| Item | Description | Qty |
|---|---|---|
| Main unit | MiniScan veterinary ultrasound system | 1 |
| Probe | Multi-frequency waterproof ultrasound probe (2.5 / 3.5 / 5.0 MHz) | 1 |
| Battery pack | Rechargeable lithium-ion battery pack | 1 |
| AC adapter | AC adapter (110–110V/240V, 50/60 Hz) | 1 |
| Wrist bandage | Wrist support bandage for extended use | 1 |
| Carrying case | Protective carrying case for transport and storage | 1 |
Optional accessories: Car lighter adapter, video goggles, additional rechargeable Li-ion battery pack, ultrasound goggles.
