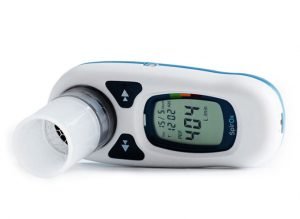

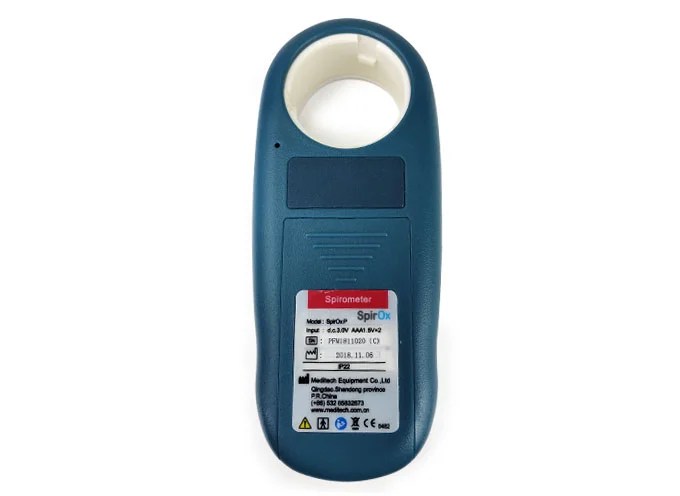

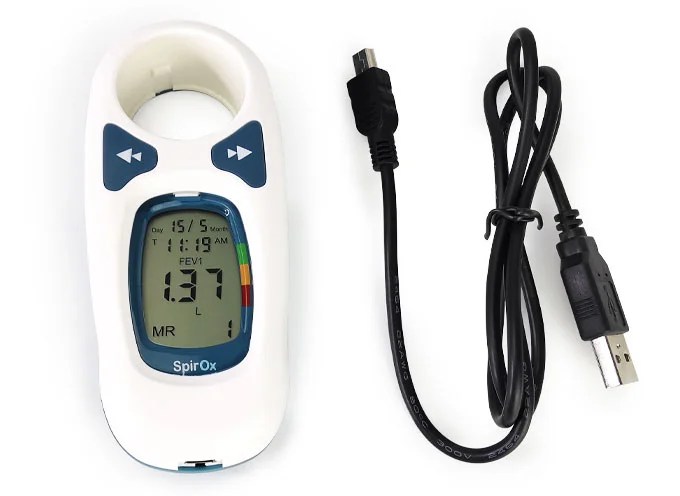

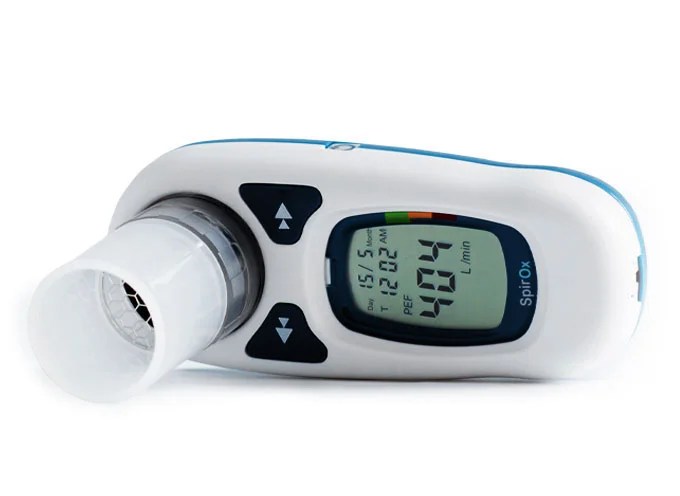

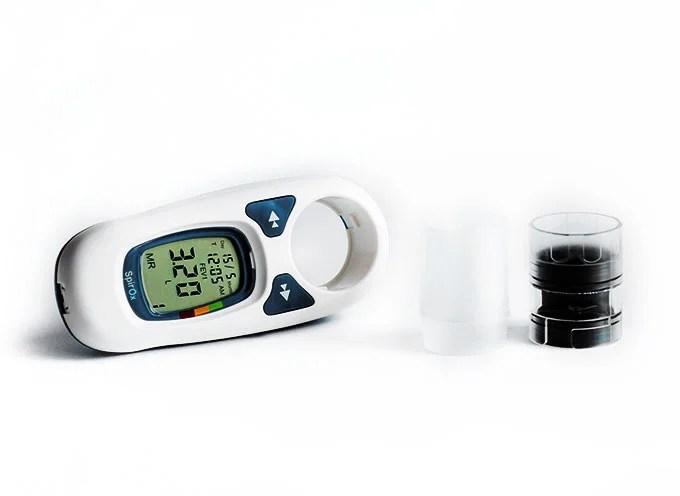

Pocket Spirometer with PC Spirometry Reports, Lung Diagnosis
- Palm size spirometer with LCD screen
- PEF and FEV1 test capabilities
- Meets ATS 1994 standardization
- Suitable for hospital or home use
- Stores up to 300 measurements
- Upload data to "SpiroSoft" Analyzer software via Bluetooth or USB
- Works on AAA batteries
- SKU
- OD-ATS1994
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Pocket Spirometer with PC Spirometry Reports
Compact, portable spirometer with LCD display for rapid PEF and FEV1 assessment. Meets ATS 1994 standardization and integrates seamlessly with SpiroSoft Analyzer software via Bluetooth or USB connectivity. Ideal for hospital, clinic, or home-based pulmonary function testing.
Clinical overview
The Pocket Spirometer is a palm-sized, portable spirometry device designed for rapid and accurate measurement of pulmonary function parameters in clinical and home settings. Compliant with ATS (American Thoracic Society) 1994 standardization, it delivers reliable PEF (Peak Expiratory Flow) and FEV1 (Forced Expiratory Volume in 1 second) measurements with measurement accuracy of ±0.1 L or ±3% for volume and ±5% or 0.2 L/s for flow.
The device features a segment liquid crystal display for real-time feedback, turbine flow sensor technology, and integrated data storage for up to 300 measurements with date and time stamps. Seamless connectivity to SpiroSoft Analyzer software via Bluetooth or USB enables comprehensive spirometry reporting, trend analysis, and patient record management. Powered by two AAA alkaline batteries, the spirometer operates reliably across standard clinical environments (10–40°C, ≤75% relative humidity, 500–1060 hPa atmospheric pressure).
Key features & surgeon benefits
Compact, Handheld Design
- Palm-sized form factor for bedside, clinic, or home use
- Lightweight and battery-powered for maximum mobility
- No external power supply or bulky equipment required
Rapid Testing & Data Management
- Real-time LCD display for immediate result feedback
- Stores 300 measurements with automatic date/time logging
- Bluetooth and USB connectivity for seamless data export
ATS-Compliant Measurement
- Meets ATS 1994 standardization for clinical validity
- Turbine sensor technology with ±3% volume accuracy
- Reliable across standard clinical operating conditions
SpiroSoft Analyzer Software
- Comprehensive spirometry reports and trend analysis
- Patient record management and longitudinal tracking
- Customisable reporting for clinical and research applications
Technical specifications
| Indications | Pulmonary function testing, FEV1 and PEF measurement, respiratory assessment |
|---|---|
| Volume range | 0.01 L – 9.99 L |
| Air flow range | 30 – 999 L/min |
| Volume accuracy | ±0.1 L or ±3%, whichever is greater |
| Flow accuracy | ±5% or 0.2 L/s, whichever is greater |
| Display | Segment liquid crystal display |
| Sensor technology | Turbine flow sensor with volume integration |
| Memory capacity | 300 measurements with date and time stamps |
| Power source | 2 × AAA 1.5 V alkaline batteries |
| Operating temperature | 10°C – 40°C |
| Operating humidity | ≤75% relative humidity |
| Atmospheric pressure range | 500 – 1060 hPa |
| Connectivity | Bluetooth and USB (SpiroSoft Analyzer software) |
| Standards compliance | ATS (American Thoracic Society) 1994 update |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Pocket Spirometer | Palm-sized spirometer with LCD display, turbine sensor, and integrated memory | 1 |
| Mouth piece | Disposable/reusable mouthpiece for patient interface | 1 |
| Cleaning cloth | Microfiber cloth for device maintenance | 1 |
| USB cable (optional) | USB connectivity cable for data transfer and software integration | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, and customisation options for the Pocket Spirometer. We offer fast delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

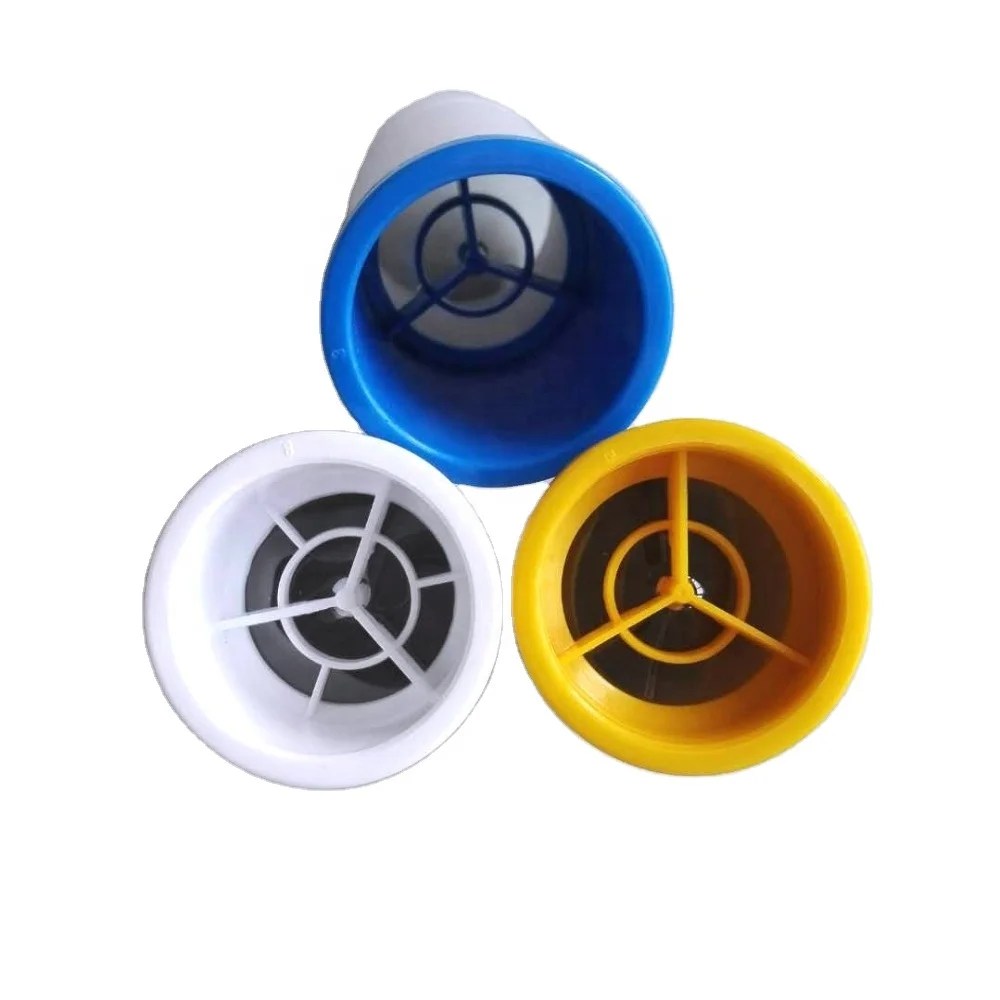

Mouthpiece for Spirometer (20 PCS Pack)
- Pack of 20 disposable mouthpieces for use with spirometer device - Designed for single patient use to prevent cross-contamination - Ensures accurate and hygienic respiratory testing - Convenient and cost-effective option for healthcare facilities and clinics

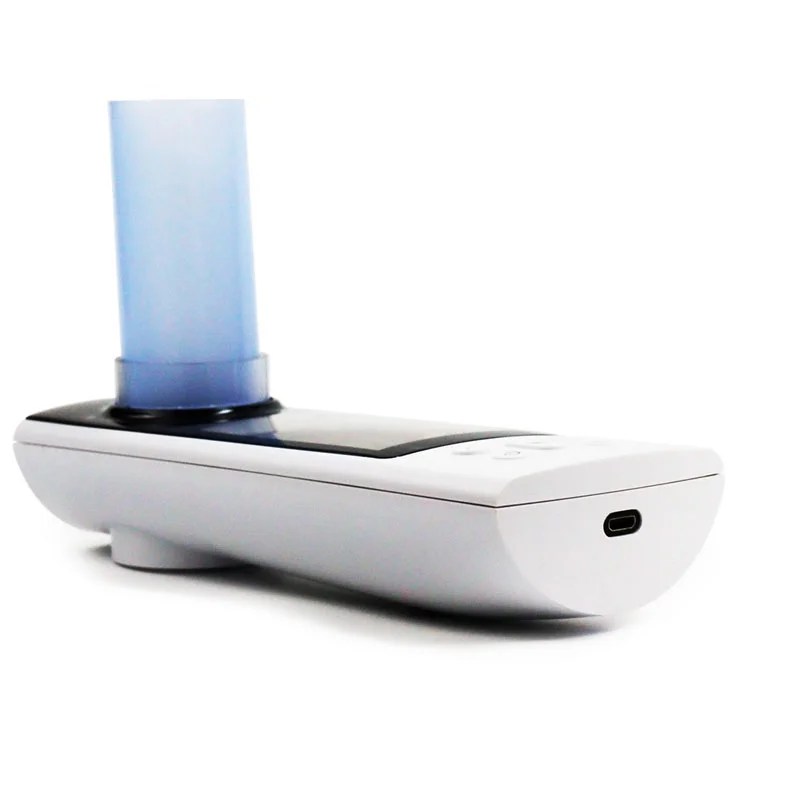

Spirometer Pulmonary Lung Function Spirox Plus
- Measures Forced Vital Capacity (FVC), Forced Expired Volume in one second (FEV1), and FEV1/FVC ratio - Displays Peak Expiratory Flow (PEF) and various flow rates - Provides data memory, trend chart display, and calibration features - Comes with PC software for printing reports and USB socket for data upload

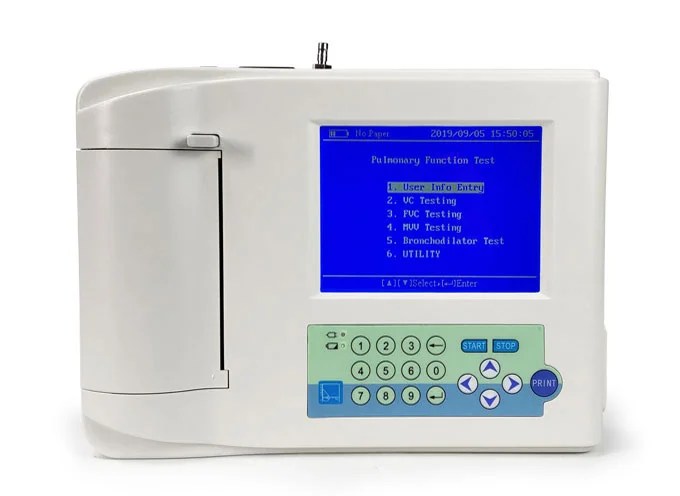

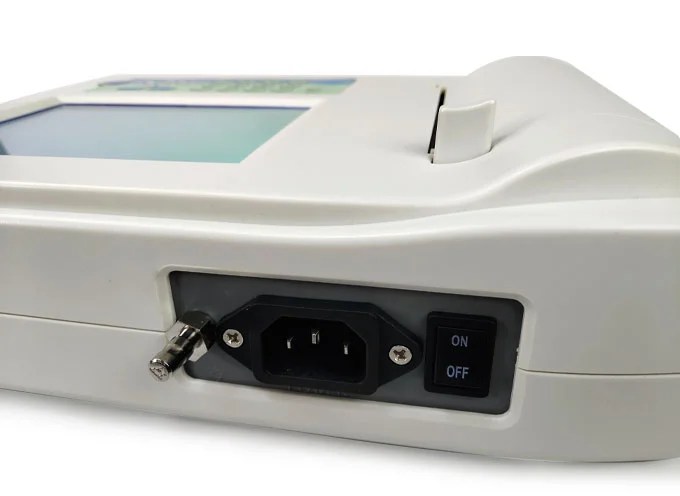

Spirometer Pro
