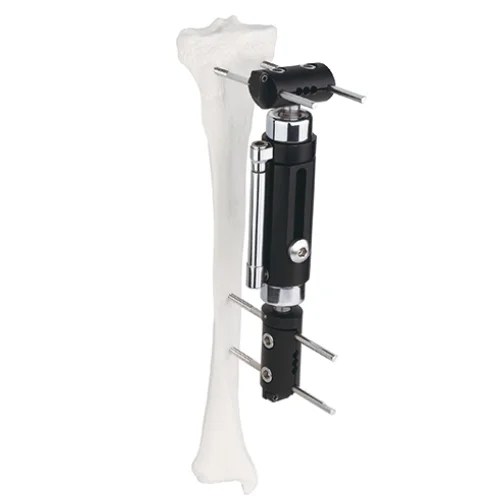

T-Shape Type External Fixator
- External fixator with T-shape design
- Available in various sizes (XS, S, M, L, XL)
- Includes different sizes of pins, hex wrenches, and screwdrivers
- Customizable dimensions available upon purchase
- SKU
- 6100-04000
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
T-Shape Type External Fixator
Precision external fixation system with T-shaped design for versatile skeletal stabilization. Available in five size configurations (XS to XL) with comprehensive instrumentation. Fully customizable dimensions to meet your specific surgical requirements.
Clinical overview
The T-Shape Type External Fixator is a modular skeletal fixation system designed for complex fracture management, limb lengthening procedures, and deformity correction. The distinctive T-shaped frame geometry provides optimal biomechanical stability while maintaining surgeon accessibility to the surgical site. Available in five graduated sizes, this system accommodates pediatric through adult patient populations with precision pin placement and secure frame assembly.
Each configuration includes size-matched pins, hex wrenches, and screwdrivers to ensure seamless intraoperative workflow. The system's modular design allows for rapid assembly and adjustment, reducing operative time while maintaining structural integrity throughout the treatment period.
Key features & surgeon benefits
Robust T-Shape Frame Geometry
- Optimized load distribution across frame members
- Reduced pin stress and improved construct rigidity
- Proven biomechanical performance in complex cases
Complete Instrumentation Kit
- Size-matched pins and tools included with each configuration
- Rapid assembly and intraoperative adjustment capability
- Intuitive design reduces operative time and learning curve
Five Size Options (XS–XL)
- Pediatric through adult patient accommodation
- Graduated pin diameters (4–6 mm) and lengths
- Comprehensive range eliminates need for multiple systems
Bespoke Dimension Options
- Custom frame dimensions available upon request
- Tailored to specific surgical anatomy and case requirements
- Flexible ordering process with dedicated support
Technical specifications
| Indications | Fracture fixation, limb lengthening, deformity correction, trauma stabilization, complex skeletal reconstruction |
|---|---|
| Sizes / range | XS, S, M, L, XL with graduated pin diameters (4–6 mm) and lengths (120–150 mm) |
| Material | Stainless steel frame and components; titanium options available |
| Sterilisation | Steam sterilizable (121°C, 15 min); ETO sterilization available upon request |
| Packaging | Individual sterile kit per size configuration; custom packaging available |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Size | Description | Qty |
|---|---|---|
| XL / L | 6×150 mm Pin | 2 |
| XL / L | HB6.0×150 mm Pin | 2 |
| XL / L | 6 mm Hex Wrench | 1 |
| XL / L | 6 mm Screwdriver | 1 |
| M | 6×130 mm Pin | 2 |
| M | HB6.0×150 mm Pin | 2 |
| M | 6 mm Hex Wrench | 1 |
| M | 6 mm Screwdriver | 1 |
| S | 5×120 mm Pin | 2 |
| S | HB5.0×130 mm Pin | 2 |
| S | 5 mm Hex Wrench | 1 |
| S | 5 mm Screwdriver | 1 |
| XS | 4×120 mm Pin | 4 |
| XS | 4 mm Hex Wrench | 1 |
| XS | 4 mm Screwdriver | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss custom dimension options, or arrange a technical consultation with our clinical specialists.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
