Elbow Joint Fixator
- Includes rings, annular diagonal tie, and single joints for elbow joint fixation
- Comes with M6*200 threaded rods and pin clamps for secure assembly
- Features 16 pin clamps for added stability
- Contains a 2-hole connecting plate for additional support
- SKU
- 6100-1205
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

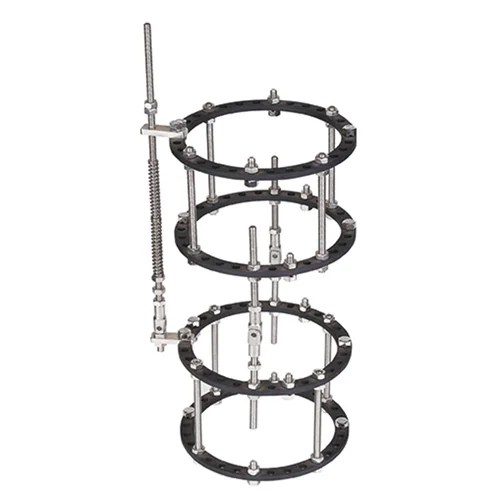

Elbow Joint Fixator
Complete modular fixation system for elbow joint stabilisation. Includes rings, diagonal ties, single joints, threaded rods, and pin clamps for secure, adjustable fixation in trauma and reconstructive procedures.
Clinical overview
The Elbow Joint Fixator is a comprehensive modular external fixation system designed for precise stabilisation of the elbow joint in acute trauma, complex fractures, and reconstructive procedures. The system combines rigid ring structures with adjustable diagonal ties and single joints, enabling surgeons to achieve optimal alignment and load distribution across the joint complex.
With 16 pin clamps and M6×200 threaded rods, the fixator provides exceptional stability and allows for intraoperative and postoperative adjustments. The 2-hole connecting plate facilitates multi-planar fixation, making it suitable for both simple and complex elbow pathology requiring external support.
Key features & surgeon benefits
Rigid Ring Architecture
- Four precision-engineered rings provide robust structural support
- Annular diagonal tie enhances multi-planar rigidity
- 16 pin clamps ensure secure soft-tissue interface
Modular Joint System
- Two single joints allow controlled motion and progressive mobilisation
- Adjustable configuration adapts to individual anatomy
- Intraoperative and postoperative fine-tuning capability
Comprehensive Component Set
- Eight M6×200 threaded rods for secure ring interconnection
- 2-hole connecting plate for additional fixation points
- Complete kit reduces need for supplementary components
Adaptable Configuration
- Modular design permits custom assembly for specific cases
- Compatible with standard Ilizarov accessories
- OEM variants available for specialised applications
Technical specifications
| Indications | Elbow joint fixation, trauma, reconstructive surgery, complex fractures |
|---|---|
| Sizes / range | As applicable |
| Material | Stainless Steel |
| Sterilisation | Autoclavable |
| Packaging | Complete kit in sterile packaging |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Rings | Precision-engineered circular frames for ring fixation | 4 |
| Annular Diagonal Tie | Diagonal connector for enhanced multi-planar rigidity | 1 |
| Single Joint | Articulated joint for controlled motion and mobilisation | 2 |
| M6×200 Threaded Rod | Stainless steel rod for ring interconnection | 8 |
| Pin Clamp | Secure clamp for pin and soft-tissue interface | 16 |
| 2-Hole Connecting Plate | Additional fixation support plate | 1 |
