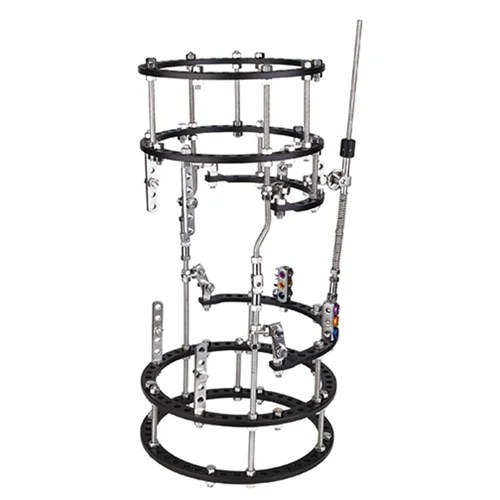

Knee Joint External Fixator
- Includes 4 rings, 1 foot ring, 1 annular diagonal tie
- Comes with 2 posts with 4 edges and 2 single joints
- Includes 16 pin clamps and 12 M6 threaded rods
- Ideal for external fixation of the knee joint
- SKU
- 6100-1208
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Knee Joint External Fixator
Comprehensive modular external fixation system for knee joint stabilisation and correction. Includes four rings, foot ring, annular diagonal tie, posts, single joints, pin clamps, and threaded rods. Designed for reliable fixation in complex knee trauma and deformity correction procedures.
Clinical overview
The Knee Joint External Fixator is a modular system engineered for precise external fixation of the knee joint in trauma, fracture management, and deformity correction. The system combines four rings with a dedicated foot ring and annular diagonal tie to provide multi-planar stability and load distribution. The inclusion of dual posts with four edges and single joints allows surgeons to achieve optimal frame geometry and alignment for each clinical scenario.
With 16 pin clamps and 12 M6 threaded rods, this system offers flexibility in construct design while maintaining structural integrity. The modular architecture enables intraoperative adjustments and progressive correction protocols, making it suitable for both acute trauma and gradual deformity correction applications.
Key features & surgeon benefits
Multi-ring architecture
- Four rings provide redundant load paths
- Annular diagonal tie enhances torsional rigidity
- Foot ring extends fixation to distal tibia and fibula
Modular assembly
- Dual posts with four edges simplify frame construction
- Single joints allow precise angular adjustment
- 16 pin clamps accommodate varied pin placement strategies
Complete system value
- 12 M6 threaded rods reduce need for additional hardware
- Comprehensive kit minimises procurement complexity
- Reusable components reduce per-case costs
Flexible configuration
- Modular design supports custom frame geometries
- Compatible with standard Ilizarov accessories
- Scalable for paediatric and adult applications
Technical specifications
| Indications | External fixation of knee joint, trauma, deformity correction, fracture management |
|---|---|
| Sizes / range | As applicable |
| Material | Stainless steel |
| Sterilisation | Autoclavable |
| Packaging | Complete modular set in sterile packaging |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Rings | 4 PCS | 4 |
| Foot ring | 1 PC | 1 |
| Annular diagonal tie | 1 PC | 1 |
| Post with 4 edges | 2 PCS | 2 |
| Single joint | 2 PCS | 2 |
| Pin clamp | 16 PCS | 16 |
| M6 threaded rod | 12 PCS | 12 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and custom configurations for your institution. We provide comprehensive technical support and clinical guidance.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

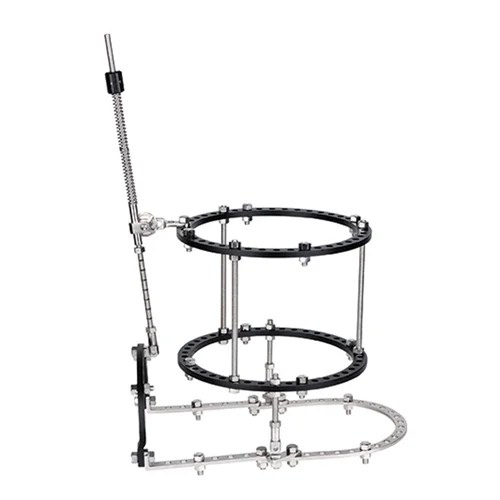

Talipes Equinovarus & Equinovalgus External Fixator
- Set of external fixator components for treating Talipes Equinovarus & Equinovalgus - Includes rings, foot ring, L connecting pieces, half ring, annular diagonal tie, single joints, threaded rods, and pin clamps - Designed to provide stability and support for correcting foot deformities - Consists of 2 rings, 1 foot ring, 2 L connecting pieces, 1 half ring, 1 annular diagonal tie, 2 single joints, 3 threaded rods, and 14 pin clamps

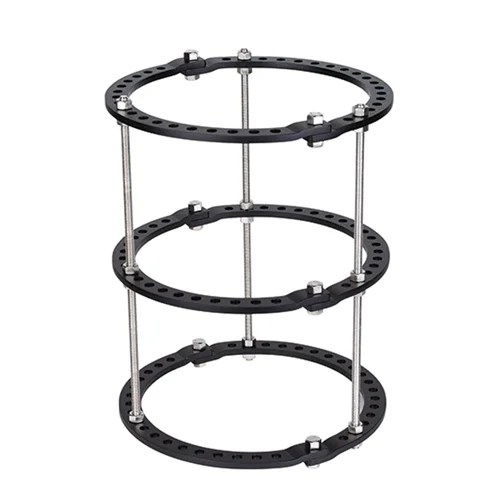

Ring Fixator For Tibial & Femur Fracture
- Includes ring fixators for tibial and femur fractures - Consists of one ring with one ear and one ring with six ears - Comes with six standard posts for secure fixation - Designed to provide stability and support for fracture healing
Talipes Equinovarus & Equinovalgus & Bone Lengthening External Fixator
- External fixator for treating Talipes Equinovarus & Equinovalgus - Includes ring, foot ring, connecting pieces, half-ring, and annular diagonal tie - Comes with inner threaded posts, single joints, M6 threaded rods, and pin clamps - Designed to assist in bone lengthening and correction of foot deformities
Elbow Joint Fixator
- Includes rings, annular diagonal tie, and single joints for elbow joint fixation - Comes with M6*200 threaded rods and pin clamps for secure assembly - Features 16 pin clamps for added stability - Contains a 2-hole connecting plate for additional support

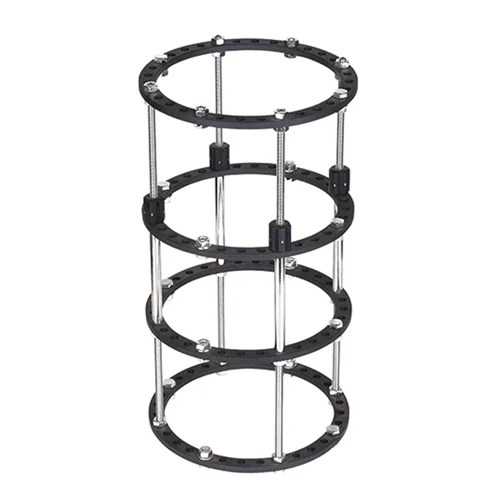

Ring Fixator For Tibial & Femur Fracture
- Complete set for tibial and femur fracture fixation - Includes 4 rings, 4 M6*400 threaded rods, 4 adjusting nuts, and 16 pin clamps - High-quality materials for durable and secure fixation - Easy to assemble and adjust for optimal patient treatment

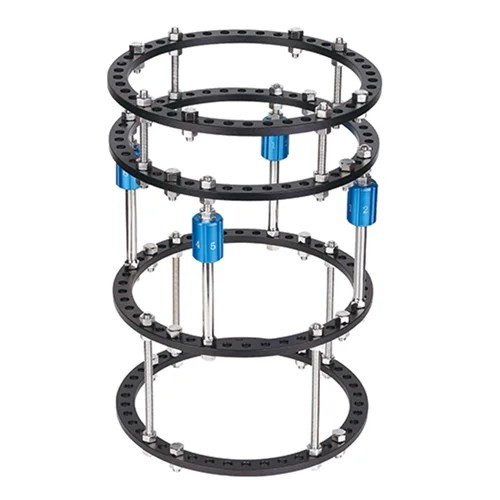

Bone Lengthening Ring Fixator For Tibial & Femur Fracture and Bone Lengthening
- Bone lengthening ring fixator designed for tibial & femur fractures - Includes 4 rings, 4 inner threaded connecting rods, 4 M6*180 threaded rods, 4 M6*120 threaded rods, and 16 pin clamps - Helps with bone lengthening and stabilization during the healing process - Ideal for orthopedic procedures requiring precise fixation and alignment.

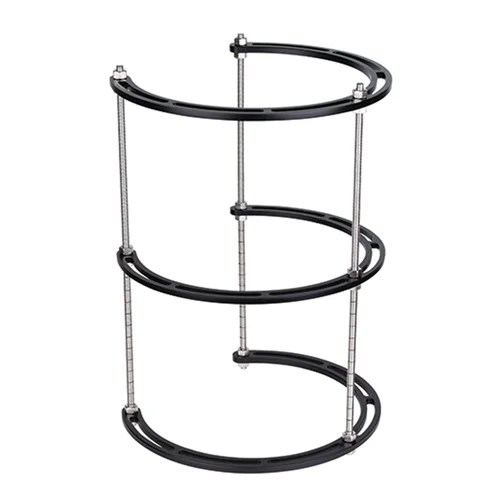

2/3 Ring Fixator For Tibial & Femur Fracture
