Hoffmann External Fixation Large Fragment Set
4.3(3 reviews)- Complete large fragment external fixation set for orthopedic procedures
- Includes a variety of rods, pins, clamps, and tools for easy assembly
- Carbon fiber connecting rods in various lengths for customization
- Features self-drilling apex pins for secure fixation
- Comes in a convenient aluminum box for storage and organization
- SKU
- 7100-02
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Tags
External Fixation System
Hoffmann External Fixation Large Fragment Set
Complete large fragment external fixation system designed for orthopedic trauma and reconstructive procedures. This comprehensive set includes a variety of rods, pins, clamps, and specialized tools for flexible assembly and secure fixation. Carbon fiber connecting rods in multiple lengths enable customization for diverse anatomical requirements.
Ordering Ref.
7100-02
Configuration22-piece set
MaterialStainless steel, carbon fiber
ApplicationLarge fragment trauma
Supplied in aluminum storage box. OEM customization and component substitution available on request.
Clinical overview
The Hoffmann External Fixation Large Fragment Set is a modular system engineered for trauma surgeons and orthopedic specialists requiring robust, adaptable fixation solutions. The system combines proven Hoffmann-type coupling geometry with modern materials—including lightweight carbon fiber rods and self-drilling apex pins—to deliver secure, anatomically flexible fixation across a wide range of large fragment fracture patterns.
Self-drilling apex pins (5×120mm, 5×150mm, 5×180mm) eliminate the need for separate drilling in many applications, reducing operative time and improving workflow efficiency. Multiple rod lengths (200–300mm) and semi-circular variants enable three-dimensional frame construction for complex anatomical requirements. The complete tool set—including reduction wrenches, adjustment wheels, and specialized chucks—supports rapid assembly and intraoperative adjustment.
Key features & surgeon benefits
Modularity
Flexible Frame Configuration
- Multiple rod lengths (200, 250, 300mm) for anatomical adaptation
- Semi-circular rod variants for curved trajectories
- 5-hole pin clamps enable multi-pin engagement per frame level
Workflow
Efficient Assembly & Adjustment
- Self-drilling apex pins reduce pre-drilling steps
- Dedicated reduction wrench and adjustment wheel for rapid intraoperative changes
- Arc drilling stand and pin chuck support precise pin placement
Materials
Lightweight, Durable Construction
- Carbon fiber connecting rods reduce frame weight without compromising rigidity
- Stainless steel couplings and posts ensure corrosion resistance
- All components steam sterilizable for repeated use
Completeness
Comprehensive Instrumentation
- 22-piece set includes all essential couplings, posts, pins, and tools
- Aluminum storage box organizes components for OR readiness
- No additional purchases required for standard large fragment applications
Technical specifications
| Indications | Large fragment fracture fixation, trauma reconstruction, orthopedic stabilization |
|---|---|
| Pin sizes | 5mm, 6mm diameter; apex pins 120–180mm length |
| Rod sizes | 8mm diameter; connecting rods 200, 250, 300mm; semi-circular variants 180, 200mm |
| Material | Stainless steel (couplings, posts, clamps, tools); carbon fiber (connecting rods) |
| Sterilisation | Steam sterilizable; supplied non-sterile |
| Packaging | Aluminum storage box with component organization |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|

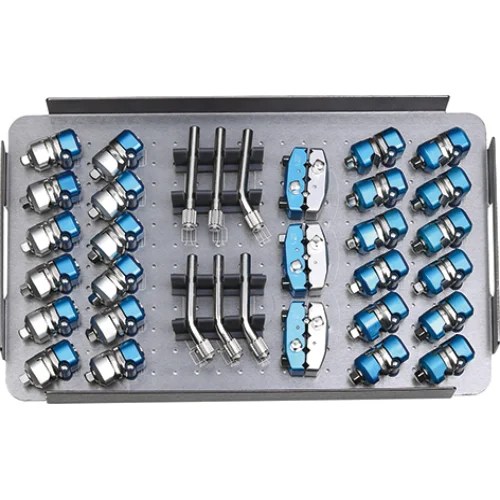

| 1 | Rod-Pin Coupling (5/6mm Pin, 8mm Rod) | 12 |
| 2 | Rod-Rod Coupling (8mm Rod) | 12 |
| 3 | 5-Hole Pin Clamp (5/6mm Pin) | 3 |
| 4 | 30 Degree Angled Post 8mm | 2 |
| 5 | Straight Post 8mm | 4 |
| 6 | Apex Pin Self-drilling 5×120mm | 4 |
| 7 | Apex Pin Self-drilling 5×150mm | 8 |
| 8 | Apex Pin Self-drilling 5×180mm | 4 |
| 9 | Drill Sleeve | 2 |

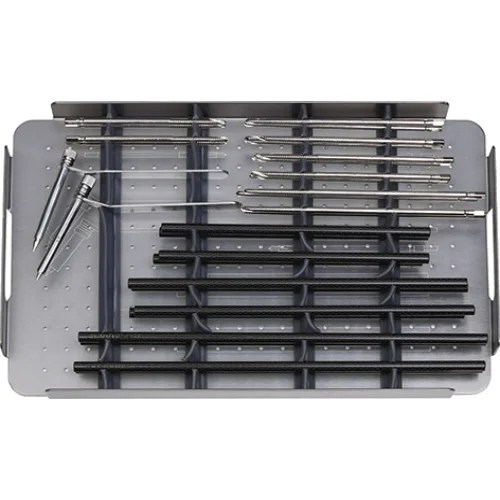

| 10 | Carbon Fiber Connecting Rod 8×200mm | 4 |
| 11 | Carbon Fiber Connecting Rod 8×250mm | 4 |
| 12 | Carbon Fiber Connecting Rod 8×300mm | 4 |
| 13 | Semi Circular Rod 8×180mm | 1 |
| 14 | Semi Circular Rod 8×200mm | 1 |

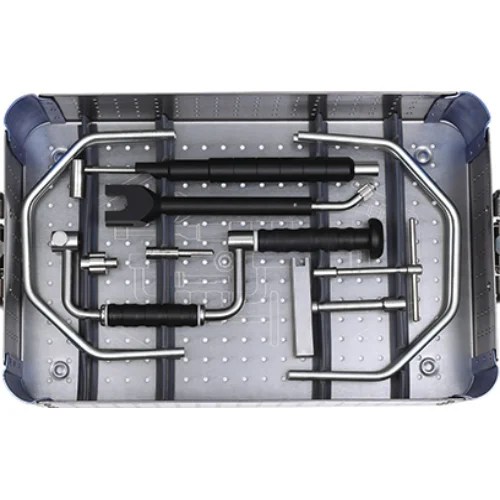

| 15 | Reduction Wrench | 1 |
| 16 | Wrench with Extension Bar | 1 |
| 17 | Adjust Wheel | 1 |
| 18 | Apex Pin Chuck | 1 |
| 19 | Arc Drilling Stand | 1 |
| 20 | T-shaped Clamp Wrench 7# | 1 |
| 21 | T-shaped Pin Wrench 5mm | 1 |
| 22 | Aluminum Box | 1 |
