Hoffmann External Fixation Small Fragment Set
- Complete small fragment external fixation set for bone fractures
- Includes various rods, pins, clamps, and drill sleeves
- Features carbon fiber connecting rods of different lengths
- Comes with specialized wrenches and drilling stand for ease of use
- SKU
- 7100-01
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

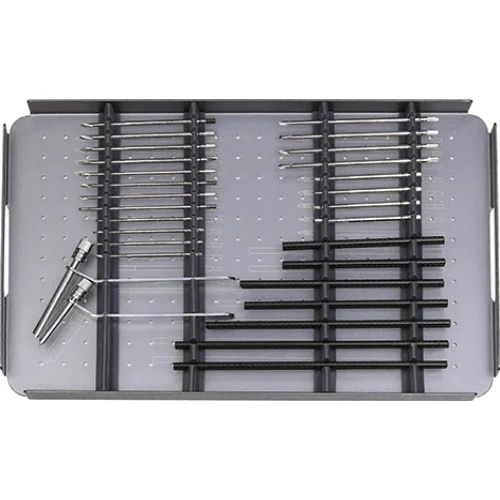

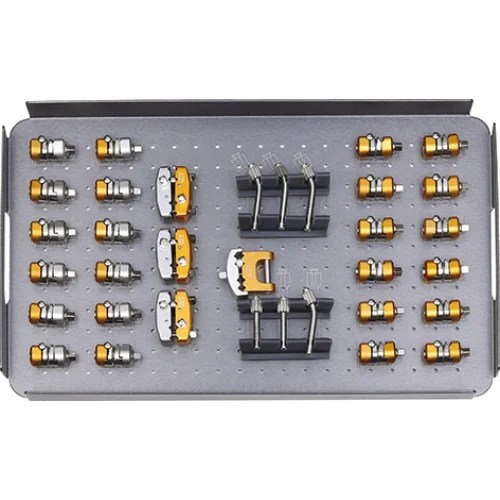

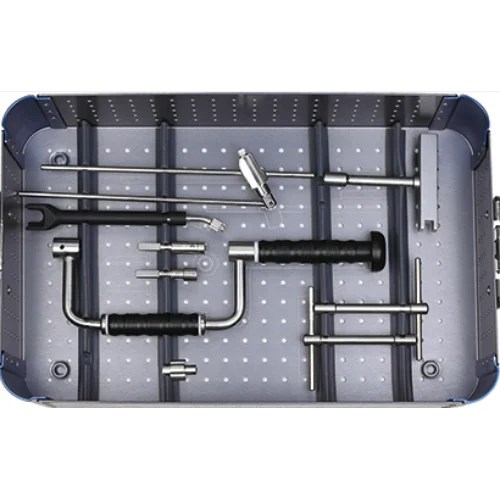

Hoffmann External Fixation Small Fragment Set
Complete small fragment external fixation system for precise management of bone fractures. Includes comprehensive range of rods, pins, clamps, and specialized drilling equipment. Carbon fiber connecting rods provide optimal strength-to-weight ratio with reduced artifact on imaging.
Clinical overview
The Hoffmann External Fixation Small Fragment Set is a comprehensive modular system designed for trauma surgeons and orthopedic specialists managing complex small fragment fractures. The system combines proven Hoffmann-type architecture with modern materials and ergonomic instrumentation, enabling rapid frame assembly and precise fracture reduction in the operating theatre.
With 27 components including multiple self-drilling apex pins, carbon fiber rods of varying lengths, specialized clamps, and a dedicated drilling stand, this set provides the flexibility to address diverse fracture patterns while maintaining ease of use and predictable clinical outcomes. The inclusion of both 3mm and 4mm pin options, coupled with multiple rod configurations, ensures adaptability across a wide range of patient anatomies and fracture geometries.
Key features & surgeon benefits
Comprehensive component range
- 27-piece modular set covering all standard fixation scenarios
- Dual pin sizes (3mm and 4mm) with self-drilling apex pins
- Four carbon fiber rod lengths (120–200mm) for flexible frame geometry
Optimized surgical efficiency
- Arc drilling stand with adjust wheel for precise pin placement
- Specialized wrenches and pin chucks for rapid assembly
- Self-drilling pins reduce operative time and tissue trauma
Cost-effective trauma solution
- Single comprehensive kit eliminates need for multiple purchases
- Durable stainless steel and carbon fiber construction ensures longevity
- Reusable components reduce per-case consumable costs
Modular design flexibility
- Individual components available for replacement or expansion
- Compatible with standard Hoffmann-type accessories
- OEM and custom configurations available for specialized applications
Technical specifications
| Indications | Small fragment fracture fixation, bone reduction and stabilization |
|---|---|
| Sizes / range | 3mm and 4mm pins; 5mm rods; rod lengths 120–200mm |
| Material | Stainless steel (clamps, posts, wrenches); carbon fiber (connecting rods) |
| Sterilisation | Autoclavable; supplied non-sterile in aluminum case |
| Packaging | Aluminum carrying case with foam insert |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Rod-Rod Coupling (5mm Rod) | 12 |
| 2 | Rod-Pin Coupling (3/4mm Pin, 5mm Rod) | 12 |
| 3 | 4-Hole Pin Clamp (3/4mm Pin) | 3 |
| 4 | Pin Clamp (3/4mm Pin) | 1 |
| 5 | Straight Post | 2 |
| 6 | 30 Degree Angled Post | 4 |
| 7 | Apex Pin Self-drilling 3×80mm | 4 |
| 8 | Apex Pin Self-drilling 3×100mm | 4 |
| 9 | Apex Pin Self-drilling 4×80mm | 4 |
| 10 | Apex Pin Self-drilling 4×100mm | 4 |
| 11 | Apex Pin Self-drilling 4×120mm | 4 |
| 12 | Drill Sleeve 3mm | 1 |
| 13 | Drill Sleeve 4mm | 1 |
| 14 | Carbon Fiber Connecting Rod 5×120mm | 4 |
| 15 | Carbon Fiber Connecting Rod 5×150mm | 4 |
| 16 | Carbon Fiber Connecting Rod 5×180mm | 2 |
| 17 | Carbon Fiber Connecting Rod 5×200mm | 4 |
| 18 | T-shaped Clamp Wrench 5# | 1 |
| 19 | Reduction Wrench | 1 |
| 20 | Elbow Joint 5mm | 1 |
| 21 | Apex Pin Chuck 3mm | 1 |
| 22 | Apex Pin Chuck 4mm | 1 |
| 23 | T-shaped Pin Wrench 3mm | 1 |
| 24 | T-shaped Pin Wrench 4mm | 1 |
| 25 | Arc Drilling Stand | 1 |
| 26 | Adjust Wheel | 1 |
| 27 | Aluminum Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customization options for your institution's specific requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
