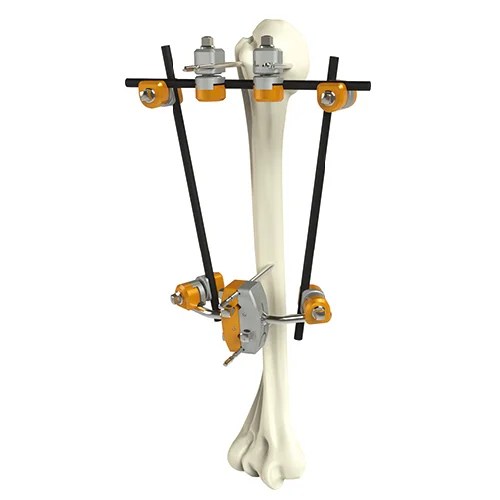

Humeral Shaft External Fixator
- The Humeral Shaft External Fixator includes a variety of components for secure fixation
- Features rod-rod and rod-pin couplings for stability
- Includes aluminum connecting rods in two different sizes for versatility
- Comes with a 4-hole pin clamp for added support
- Contains apex pins for self-drilling capabilities
- Includes post with a 30-degree angle for customized positioning
- Ideal for humeral shaft fractures and other orthopedic applications
- SKU
- 7100-10
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Humeral Shaft External Fixator
Comprehensive external fixation system designed for secure stabilization of humeral shaft fractures. Features rod-rod and rod-pin couplings, aluminum connecting rods, and self-drilling apex pins for reliable intraoperative control and patient outcomes.
Clinical overview
The Humeral Shaft External Fixator is a modular external fixation system engineered for precise stabilization of proximal and mid-shaft humeral fractures. The system combines rod-rod and rod-pin coupling mechanisms with self-drilling apex pins, enabling surgeons to achieve stable, anatomically aligned fixation across a range of fracture patterns. The inclusion of dual-length aluminum connecting rods (200mm and 250mm) and a 4-hole pin clamp provides flexibility in construct design while maintaining rigidity and load-bearing capacity.
Ideal for acute trauma management, revision cases, and complex fracture scenarios where external fixation is the preferred approach. The modular design allows rapid assembly in the operating theatre, reducing operative time and facilitating intraoperative adjustments when needed.
Key features & surgeon benefits
Dual-coupling stability
- Rod-rod couplings for frame-to-frame connections
- Rod-pin couplings for secure pin-to-frame attachment
- 4-hole pin clamp for multi-directional pin support
Rapid assembly & positioning
- Self-drilling apex pins minimize soft-tissue trauma
- Angled post (30°) enables customized frame positioning
- Modular components allow quick intraoperative adjustments
Flexible construct design
- Two aluminum rod lengths (200mm, 250mm) for varied anatomy
- Compatible with standard 3/4mm pin systems
- Supports uniplanar and multiplanar configurations
Reliable materials & construction
- Aluminum rods for lightweight, radiolucent frames
- Stainless steel couplings and clamps resist corrosion
- Precision-engineered components ensure repeatable performance
Technical specifications
| Indications | Humeral shaft fractures, proximal humerus trauma, complex fracture patterns |
|---|---|
| Pin sizes | 3/4mm diameter |
| Rod diameter | 5mm |
| Rod lengths | 200mm, 250mm |
| Material | Aluminum (rods), stainless steel (couplings, clamps) |
| Sterilisation | Steam autoclavable |
| Packaging | Complete kit in sterile, reusable instrument tray |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item Code | Description | Qty |
|---|---|---|
| 7100-1001 | Rod-Rod Coupling (5mm Rod) | 4 |
| 7100-1002 | Rod-Pin Coupling (3/4mm Pin, 5mm Rod) | 2 |
| 7100-1003 | 4-Hole Pin Clamp (3/4mm Pin) | 1 |
| 7100-1004 | Aluminum Connecting Rod 5×250mm | 2 |
| 7100-1005 | Aluminum Connecting Rod 5×200mm | 1 |
| 7100-1006 | Post 5mm / 30 Degree | 2 |
| 7100-1007 | Apex Pin Self-drilling 4×120mm | 4 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, and custom configurations. We offer rapid delivery and full technical support for all external fixation systems.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
