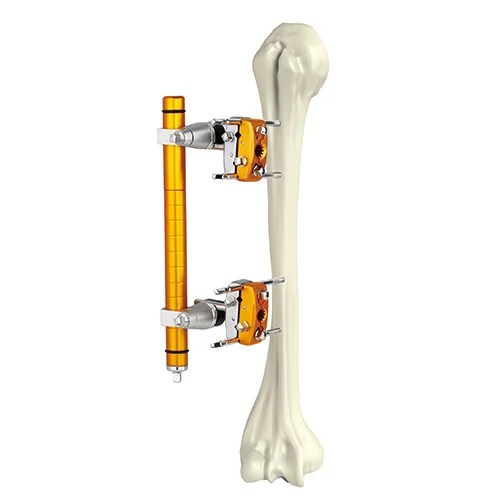

Humeral Shaft External Fixator
- Complete external fixator system for humeral shaft fractures
- Includes compression distraction tube, tube-rod coupling, pin clamps, and post
- Features self-drilling apex pins for secure fixation
- Designed to provide stable support and alignment for healing
- SKU
- 7100-11
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Humeral Shaft External Fixator
Complete external fixator system for humeral shaft fractures. Provides stable support and alignment for healing with self-drilling apex pins for secure fixation. Includes compression distraction tube, tube-rod coupling, pin clamps, and post components.
Clinical overview
The Humeral Shaft External Fixator is a comprehensive system designed for the management of humeral shaft fractures. This Hoffman-type external fixator provides rigid fixation and alignment control, enabling early mobilisation and reducing complications associated with prolonged immobilisation. The system combines proven biomechanical principles with practical surgical workflow, making it suitable for acute fracture management, revision cases, and complex fracture patterns.
The modular design allows surgeons to customise the construct based on fracture morphology, patient anatomy, and clinical requirements. Self-drilling apex pins eliminate the need for separate drilling steps, reducing operative time and improving pin placement accuracy. The compression-distraction capability supports both reduction and progressive alignment correction during the healing phase.
Key features & surgeon benefits
Rigid Construct Support
- Self-drilling apex pins for secure bone engagement
- 4-hole pin clamps provide multi-directional control
- Compression-distraction tube enables reduction and alignment adjustment
Efficient Surgical Technique
- Self-drilling pins reduce operative time and complexity
- Modular components allow rapid assembly and customisation
- Intuitive coupling and clamping mechanisms simplify intraoperative adjustments
Cost-Effective Solution
- Complete system reduces need for additional fixation devices
- Reusable components minimise long-term consumable costs
- Straightforward technique reduces operative time and resource utilisation
Modular Design Flexibility
- Individual components available for component-level ordering
- Adaptable to various fracture patterns and patient anatomies
- OEM customisation options available for specific clinical protocols
Technical specifications
| Indications | Humeral shaft fractures, fracture reduction and stabilisation |
|---|---|
| Sizes / range | 15mm compression distraction tube, 3/4mm pin clamps, 5mm posts, 4×120mm apex pins |
| Material | Stainless Steel |
| Sterilisation | As applicable |
| Packaging | Complete system kit |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item Code | Description | Qty |
|---|---|---|
| 7100-1101 | Compression Distraction Tube 15mm | 1 |
| 7100-1102 | Tube-Rod Coupling 15/5mm | 2 |
| 7100-1103 | 4-Hole Pin Clamp (3/4mm Pin) | 2 |
| 7100-1104 | Post 5mm/30 Degree | 2 |
| 7100-1105 | Apex Pin Self-drilling 4×120mm | 4 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical applications, or arrange a product demonstration. We provide rapid delivery and comprehensive technical support for all external fixator systems.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
