Tibia & Percone External Fixator
- Complete external fixator set for tibia and percone fractures
- Includes rod-rod coupling, pin clamp, angled post, and connecting rods
- Also comes with self-drilling apex pins for easy application
- High-quality aluminum components for stability and durability
- SKU
- 7100-14
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Tibia & Percone External Fixator
Complete external fixator set engineered for tibia and percone fracture management. Includes rod-rod coupling, pin clamps, angled posts, and self-drilling apex pins. High-quality aluminum components deliver superior stability and durability for reliable clinical outcomes.
Clinical overview
The Tibia & Percone External Fixator is a comprehensive system designed for effective management of complex tibia and percone fractures. This modular fixator combines precision-engineered aluminum components with self-drilling apex pins to provide surgeons with a versatile, reliable solution for both simple and complex fracture patterns.
The system's rod-rod coupling mechanism, multi-hole pin clamps, and angled posts enable flexible frame configurations tailored to individual fracture geometry. Self-drilling apex pins streamline insertion and reduce operative time, while the lightweight aluminum construction maintains rigidity without excessive bulk.
Key features & surgeon benefits
Modular Design
- Rod-rod coupling for multi-plane frame configurations
- 5-hole pin clamps accommodate 5–6mm pins
- Angled posts enable precise anatomical alignment
Efficient Application
- Self-drilling apex pins eliminate pre-drilling steps
- Quick-connect rod coupling reduces assembly time
- Intuitive component interface for rapid frame setup
Structural Integrity
- High-grade aluminum resists corrosion and fatigue
- Precision-machined components ensure consistent fit
- Proven stability across diverse fracture types
Cost-Effective Solution
- Complete kit reduces need for supplementary purchases
- Reusable aluminum components lower per-case costs
- Scalable inventory management with modular design
Technical specifications
| Indications | Tibia and percone fracture fixation |
|---|---|
| Sizes / range | Pin sizes: 5–6mm; Rod diameter: 8mm; Rod lengths: 250mm, 300mm |
| Material | Aluminum (components); Stainless steel (pins) |
| Sterilisation | As applicable |
| Packaging | Complete kit in protective case |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item Code | Description | Qty |
|---|---|---|
| 7100-1401 | Rod-Rod Coupling (8mm Rod) | 6 |
| 7100-1402 | 5-Hole Pin Clamp (5/6mm Pin) | 2 |
| 7100-1403 | 30 Degree Angled Post 8mm | 4 |
| 7100-1404 | Aluminum Connecting Rod 8×250mm | 2 |
| 7100-1405 | Aluminum Connecting Rod 8×300mm | 1 |
| 7100-1406 | Apex Pin Self-drilling 5×150mm | 4 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the Tibia & Percone External Fixator system.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

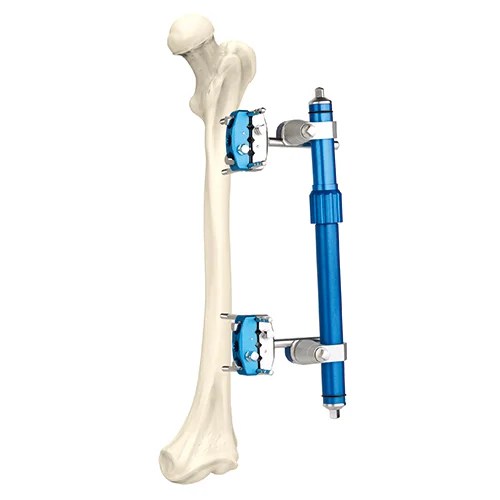

Femoral External Fixator
- Comprehensive femoral external fixator kit - Includes tube-rod coupling, compression distraction tube, pin clamp, angled post, and self-drilling apex pins - High-quality instruments and accessories for orthopedic surgeons and patients - Easy ordering process with delivery in just 7 days

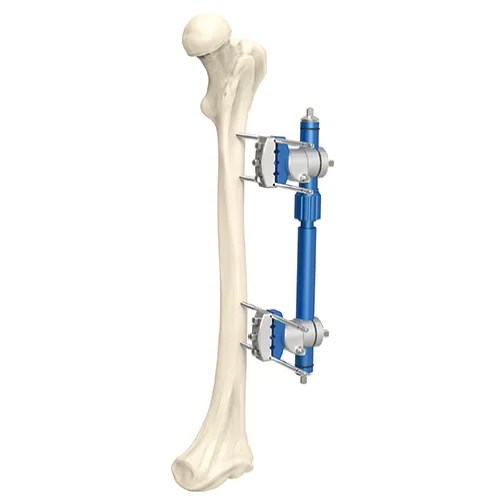

Femoral External Fixator
- Complete set of components for femoral external fixation - Includes tube-rod coupling, compression distraction tube, pin clamps, angled posts, and apex pins - High-quality materials for durability and stability - Suitable for orthopedic surgeons and patients needing external fixation systems

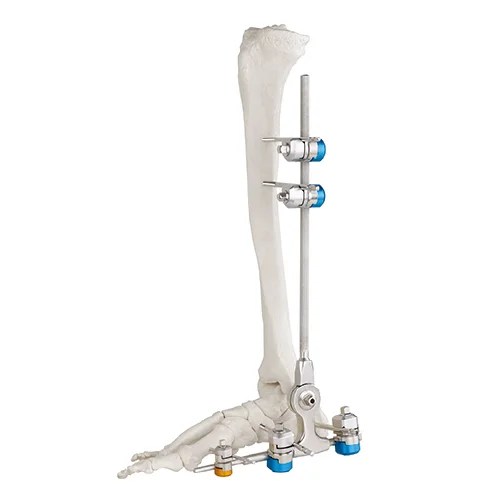

Ankle Joint External Fixator
- Includes rod-rod coupling, rod-pin coupling, ankle joint, and self-drilling apex pins - Designed for ankle joint external fixation - Easy ordering process for patients and orthopedic surgeons - High-quality materials for effective fixation - Quick delivery in 7 days
Knee Joint External Fixator
- Includes rod-rod coupling, rod-pin coupling, knee joint, pin clamp, angled post, connecting rod, and self-drilling pins - Perfect quality for orthopedic use - Easy ordering for patients and surgeons - Quick delivery within 7 days

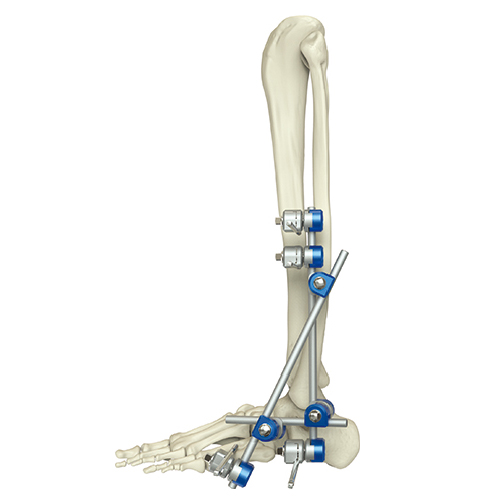

Ankle Joint External Fixator
- Includes rod-rod coupling, rod-pin coupling, aluminum connecting rods, and apex pins - Designed for ankle joint external fixation procedures - High-quality materials for durability and stability - Easy to order and fast delivery within 7 days

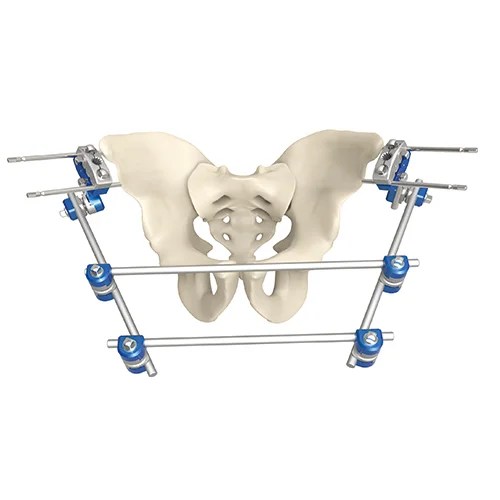

Pelvic External Fixator
- Complete set for pelvic external fixation - Includes rod-rod coupling, pin clamp, angled post, and connecting rods - Comes with self-drilling apex pins for easy application - High-quality materials for reliable fixation - Quick delivery within 7 days Visit our website for more external fixator combinations and systems.

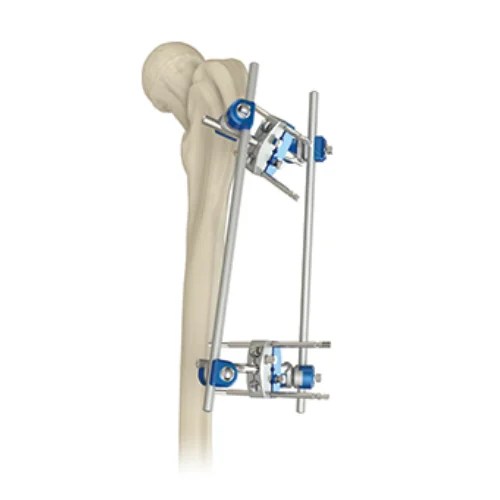

Proximal Femur External Fixator
